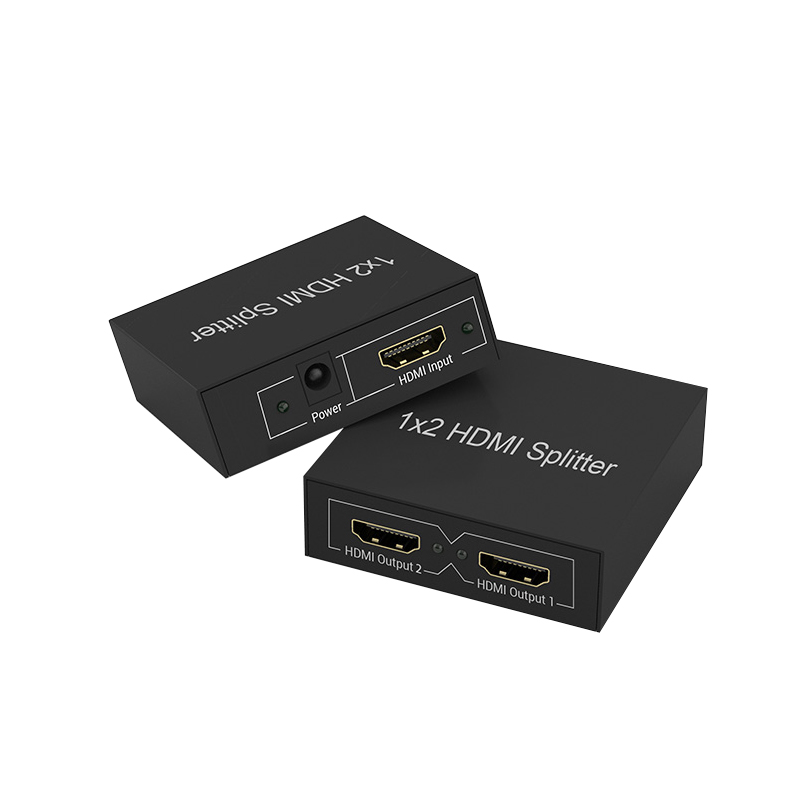

1x2  HD Cable Splitter

Features:

l 1 X HDMI input, 2 X HDMI output.

l HDMI resolution up to 4K/60fs

l Supports Automatic EDID ,Support differernt resolution output

l Support Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.

l Support audio fromat

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD

l Support signal Re-Timing.

l Use AWG 26HDMI 2.0 standard cable,input

l transmission distance up to 3m, output transmission

distance up to 3m.

l Transmit lossless audio and video signal without delay.

l Simple to install.

Specifications:

Suppoort HDMI HDCP Version ............................................HDCP 2.2

HDMI Input/Output Resolution.........................................Up to4K/60fs

Support HDMI Video Color Format............................................2160p,

10/12 bits,24/25/30Hz,  2160p, 10/12 bits, 50/60Hz

HDMI MaxBandwidth..............................................................600MHz

HDMI Audio Format.........…..DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/olby-AC3/DSD

HDMI Max Baud Rate..............................................................18Gbps

Input Output TMDS Signal.......................................0.5~1.5Vp-p(TTL)

Input Output DDC Signal....................................................5Vp-p(TTL)

HDMI Input Cable Distance......≤3m AWG26 HDMI Standard Cable

HDMI Output Cable Distanc.....≤3m AWG26 HDMI Standard Cable

Max Working Current................................................................300mA

Power Adapter Format..................AC 100V-240V 50/60HZ,DC 5V/1A

Operating Temperature Range............................................-10~+55ºC

Storage Temperature Range...............................................-20~+60ºC

Operating Humidity Range..............10~90%RH(No Condensation)

Storage Humidity Range...........5~95%RH(No Condensation)

Case Dimension.....................................................112×55×18(mm)
